point support
< <
Point support works as an integrated solution to provide both flexibility and ease of installation. Search installs using point support for a variety of applications.
Overview

3form standoff and spider point-support architectural hardware systems provide versatile and elegant solutions for affixing 3form translucent materials to a variety of substrates, including wood, concrete, steel studs, gypsum, and aluminum framing systems, such as 3form Versa. 3form Hardware offers an impressive range of precision machined components, including barrels, caps, spiders, and anchors, work together as an integrated solution to provide both flexibility and ease of installation.

For details on the number of point supports needed for a specific material or the type of anchors that are available for various substrates, please download the solutions.

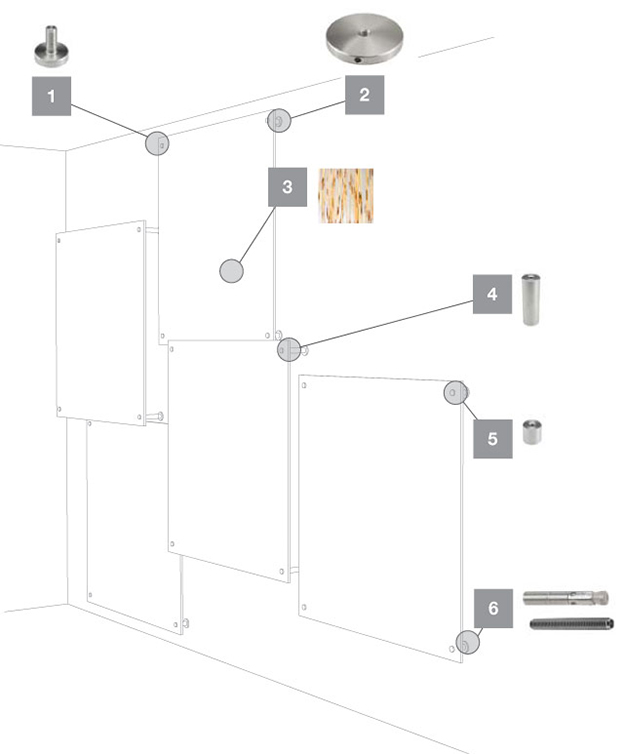

Concrete Substrate Example

For 100 x 100 mm (4’ x 4’) individual panel standoffs, specify different or consistent length barrels to anchor into various substrates, including drywall, wood studs or blocking, metal studs or blocking, concrete, or aluminum framing systems, including 3form Versa. For specific information on 3form Hardware and what is needed for different applications, please download the Solutions Document.

Components:

  1. (20) 25mm x 20mm cap, 3-15-0025
  2. (20) M 8 x 50mm flange, 3-15-3051
  3. (5) 1219mm x 1219mm, 13mm varia
  4. (8) 25mm x 75mm barrels, 3-15-0727
  5. (12) 25mm x 25mm barrels, 3-15-0725
  6. (20) M 8 concrete anchors, 3-15-3011A & (20) M8 threaded studs, 3-15-3032A

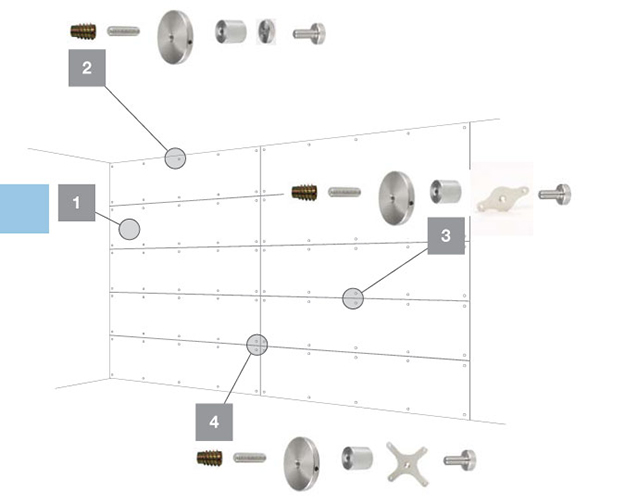

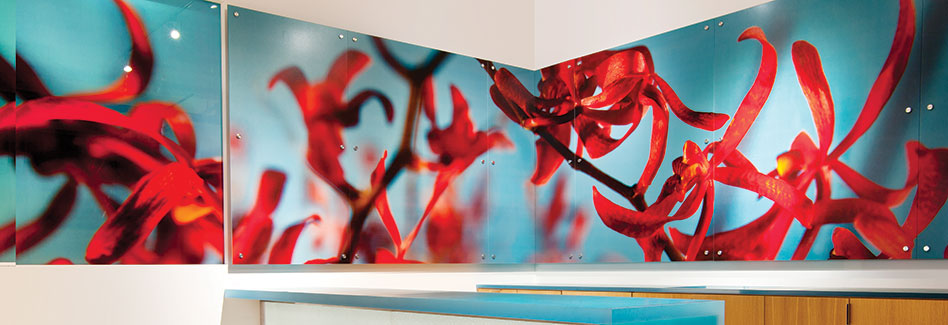

Complete Wall Covering

Complete wall covering. Using 1-,2-,and 4-point spiders allows you to create a full pattern of panels to cover a wall. Spiders can also anchor to the end of a barrel, and can therefore anchor into any of the possible substrates. For more information on 3form Hardware or for additional details on specific applications, please download the Solutions Document.

Components:

  1. (10) 2438mm x 610mm Varia Ecoresin panels, Ocean Mist

  2. (8) Single Point Connections:
    • M8 Threaded Insert, 3-15-0791
    • M8 Threaded Rod, 3-15-3032
    • M8 x 50mm Flange, 3-15-3051
    • 25mm x 25mm Barrel, 3-15-0725
    • 25mm x 6mm spacer, 3-15-1552
    • 20mm x 20mm Cap, 3-15-0025
  3. (34) 2 point connections:
    • M8 threaded insert, 3-15-0791
    • M8 threaded rod, 3-15-3032
    • M8 x 50mm flange, 3-15-3051
    • 25mm x 25mm barrel, 3-15-0725
    • 2 point spider, 3-15-0781
    • 20mm x 20mm cap (2 ea), 3-15-0025
  4. (4) 4 Point Connections:
    • M8 Threaded Insert, 3-15-0791
    • M8 Threaded Rod, 3-15-3032
    • M8 x 50mm Flange, 3-15-3051
    • 25mm x 25mm Barrel, 3-15-0725
    • 4 Point Spider, 3-15-0766
    • 20mm x 20mm Cap (4 ea), 3-15-0025
Powder Coating

[a] Jet Black
[b] Carbide
[c] Satin Anodized | standard for non-powder coated hardware
[d] Signal White

Introduce the versatility of color to most 3form hardware systems. Customizing entire solutions is now easier than ever with nearly-infinite material possibilities and the option for hardware to match. Select colors that are self-effacing and blend into surroundings or make a bold statement with a solution’s supporting hardware.

Powder Coating for 3form hardware systems is available in 3 standard available colors: Jet Black, Carbide, and Signal White in a gloss finish. These standard colors will only add 3 weeks to a standard lead time (check with your 3form Sales Rep or Sales Coordinator for pricing). Non-standard color requests must be derived from the RAL Classic Color Deck and will have a gloss finish. These will carry a longer lead time and higher setup fee. Custom colors or matching are not currently available.
