For full details on this hardware (including installation, current specifications, etc) please refer to the Solutions Document.

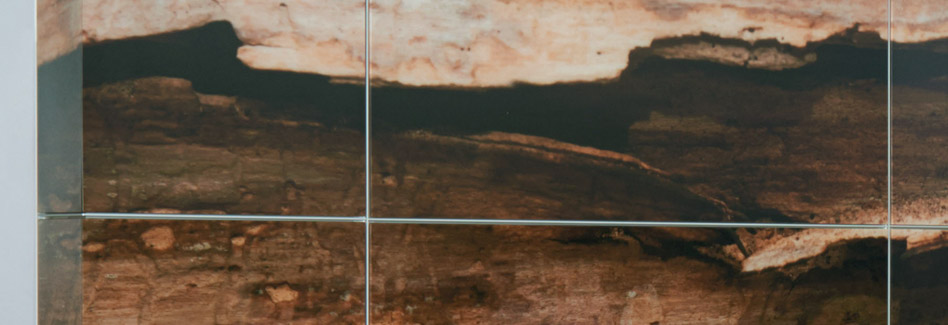

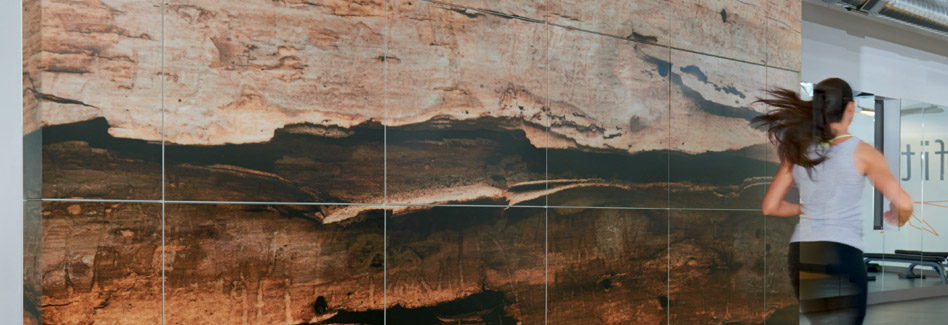

The BoxWall system can be configured as a volume condition mounted to existing walls.

Material & Guage Compatibilities

• Varia: 1/4" (Recommended), 3/8", 1/2"
• Chroma: 1/4"
• Struttura: 3/8"

Most colors, patterns, and textures can be used with the BoxWall system. For the cleanest appearance, edges should be sanded or polished.

Size Limitations

Maximum Panel (Grid) Size:

• 1/4" Material - approx. 48" x 48" or max. 16 ft²
• 3/8" Material - approx. 48" x 72" or max. 24 ft²
• 1/2" Material - approx. 48" x 96" or max. 32 ft²

Horizontal Section View

Vertical Section View
