Solutions

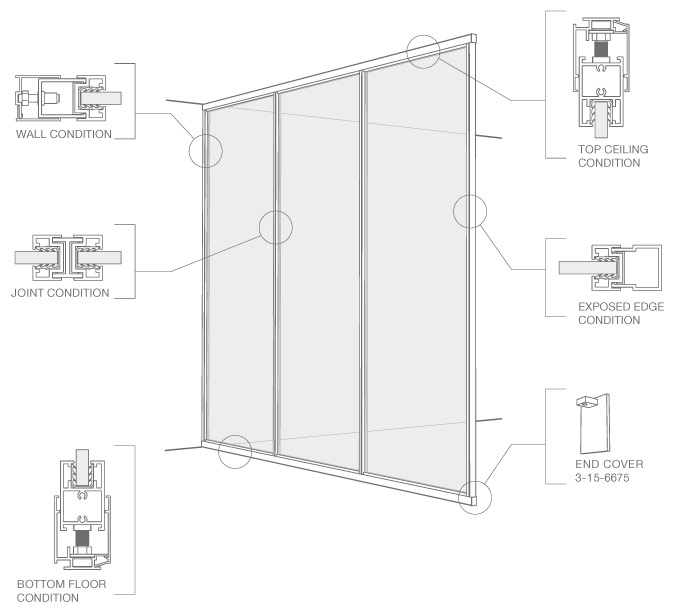

In this installation 3 framed panel modules are combined to form a Frame installation that is attached to a wall at one end and exposed at the other end, with both a floor and ceiling attachment. The various assemblies are shown that complete this installation.

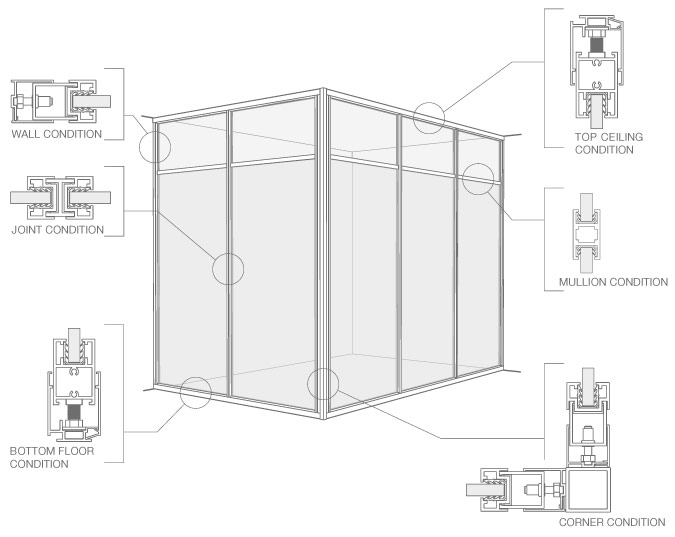

This installation utilizes a Corner Post to create a room that is sealed off with 10 different panel types in 5 different modules, each with a Panel Divider mullion.

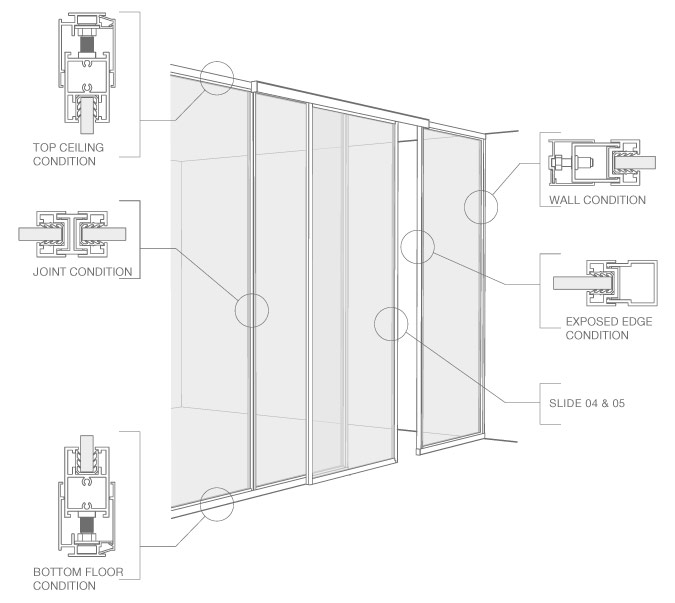

3form Frame is compatible aesthetically and functionally with Slide04 and Slide05 from 3form. These are both framed door systems that can utilize rectangular-shaped aluminum profiles that look similar to Frame and have the same finish. Slide04 has a thin floor track and bears the weight on the floor, while Slide05 does not have a floor track and places the weight of the door on the ceiling. For more detail on these systems please see the 3form Slide04 and Slide05 Solution Documents.
