Point Support Example 1

For 100 x 100 mm (4’ x 4’) individual panel standoffs, specify different or consistent length barrels to anchor into various substrates, including drywall, wood studs or blocking, metal studs or blocking, concrete, or aluminum framing systems, including 3form Versa. For specific information on 3form Hardware and what is needed for different applications, please download the Solutions Document.

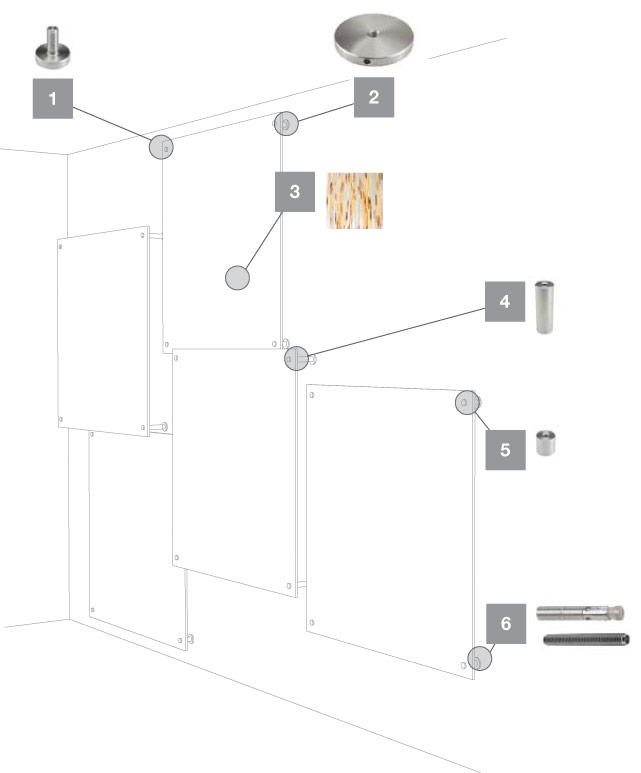

1 (20) 25mm x 20mm cap, 3-15-0025 | 2 (20) M 8 x 50mm flange, 3-15-3051 | 3 (5) 1219mm x 1219mm, 13mm varia | 4 (8) 25mm x 75mm barrels, 3-15-0727 | 5 (12) 25mm x 25mm barrels, 3-15-0725 | 6 (20) M 8 concrete anchors, 3-15-3011A & (20) M8 threaded studs, 3-15-3032A
