Point Support Example 2

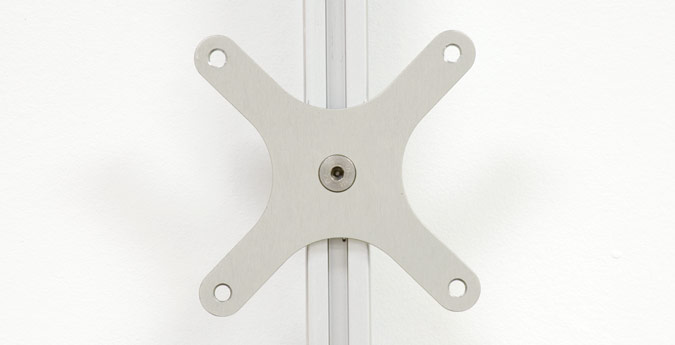

Complete wall covering. Using 1-,2-,and 4-point spiders allows you to create a full pattern of panels to cover a wall. Spiders can also anchor to the end of a barrel, and can therefore anchor into any of the possible substrates. For more information on 3form Hardware or for additional details on specific applications, please download the Solutions Document.

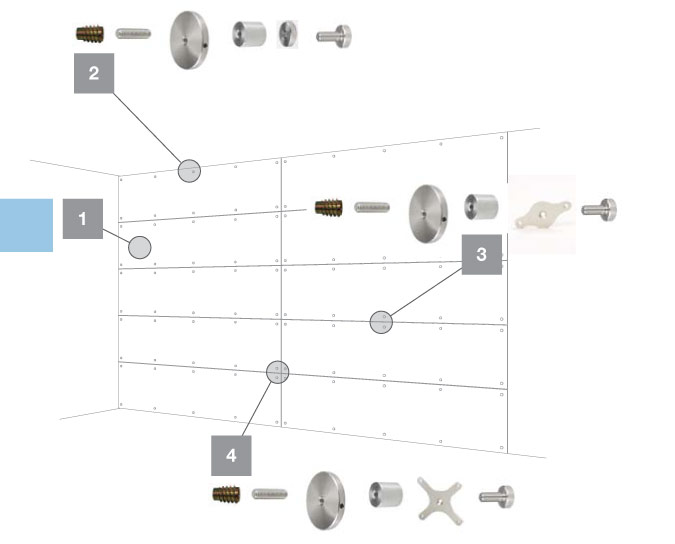

1 (10) 2438mm x 610mm varia panels, 6mm solo ocean mist | 2 (8) Single Point Connections, 3-15-0791 M8 Threaded Insert, 3-15-3032 M8 Threaded Rod, 3-15-3051 M8 x 50mm Flange, 3-15-0725 25mm x 25mm Barrel, 3-15-1552 25mm x 6mm spacer, 3-15-0025 20mm x 20mm Cap | 3 (34) 2 point connections, 3-15-0791 M8 threaded insert, 3-15-3032 M8 threaded rod, 3-15-3051 M8 x 50mm flange, 3-15-0725 25mm x 25mm barrel, 3-15-0781 2 point spider, 3-15-0025 20mm x 20mm cap (2 ea) | 4 (4) 4 Point Connections, 3-15-0791 M8 Threaded Insert, 3-15-3032 M8 Threaded Rod, 3-15-3051 M8 x 50mm Flange, 3-15-0725 25mm x 25mm Barrel, 3-15-0766 4 Point Spider, 3-15-0025 20mm x 20mm Cap (4 ea)
