Suspend Overview

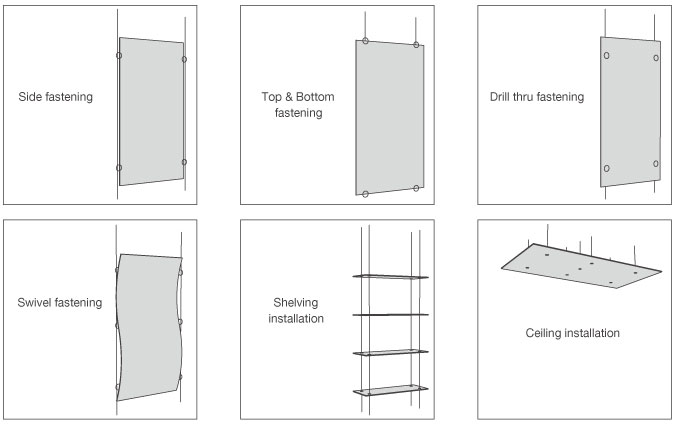

Many different hanging partition installations and applications are possible by selecting the appropriate connectors and components. This document will outline a few different possibilities to provide an idea on which components are most appropriate for your unique installation.

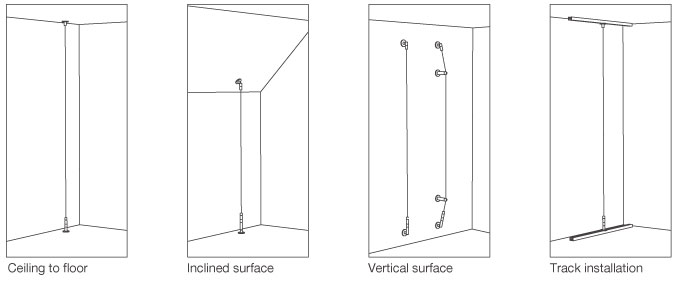

For cable hardware that is not attached at the bottom please see the Shapes category of hardware. The top and bottom attachments can happen at the ceiling, floor, or wall. Some of the different options are shown below:

3form’s cable connector collection is designed for ease of use and installation versatility. The jointed connectors increase the range of applications, allowing cables to be fixed to inclined and vertical surfaces. Our cable track system also adds flexibility to installations by allowing users to adjust cable connections anywhere along the track.

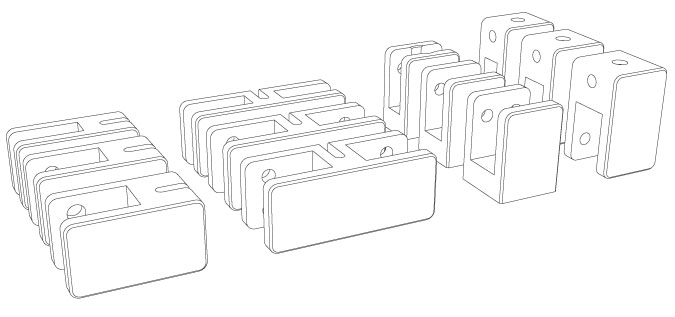

The Suspend Smooth collection offers a few different types of components that accommodate varying gauges to create an extremely clean, consistent, beautiful look. For instance, in the Curve collection a single panel connector will accommodate several gauges of material, but with thinner gauges you will always see a wide gap in the channel with a very visible set screw. The Smooth collection allows you to simply have a thinner channel so you won’t see the set screw, creating a much cleaner aesthetic. However, Smooth only allows single and double panel connection, surface brackets, and top grippers.

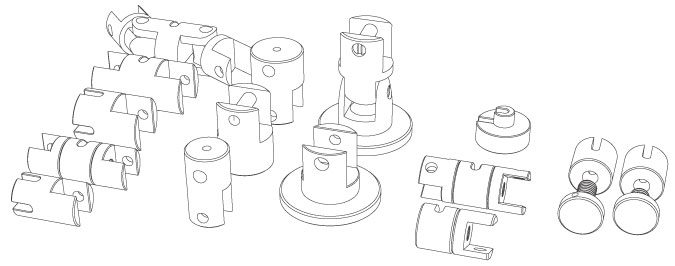

The Suspend Curve collection creates many different configuration possibilities that are only possible with cylinder shapes. Curve can swivel allowing undulation in cold- or heat-formed panels. It allows for drill-thru connectors with caps or hinged connectors allowing panels to be placed angularly next to one another.
