point support XT
Material Options
Material Options
Use hardware in conjunction with the following approved exterior materials to achieve color, depth and translucency: 1/2" Koda, 1/2" Chroma or 1" Chroma

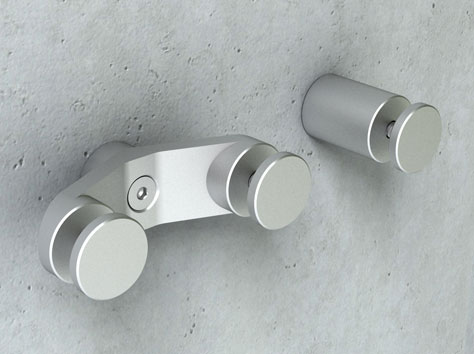

Hardware Components
316 grade stainless steel hardware supports beautiful applications. Point Support accommodates 1 point and 2 point Spiders, with 2" and 4" tall barrels.

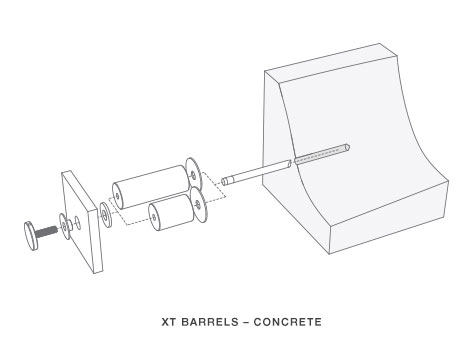

Mounting Options
Mounting Options
Point Support XT hardware system can anchor into concrete, brick and CMU to meet a designer’s exterior spatial needs.
Technical Details
Exterior Façade Panels with Point Support XT
Point Support XT is manufactured using Marine Grade 316 stainless steel with an anti-loosening patch directly applied to the threads (as thread-locking chemicals are not compatible with Varia Ecoresin). Barrels and caps from the XT line are 1-1/2” diameter to allow increased hole size for expansion/contraction inherent in exterior applications. Teflon washers allow expansion without binding the panel. Quantity of supports per panel is determined by 3form personnel and varies by condition. Please contact your 3form rep for more information.

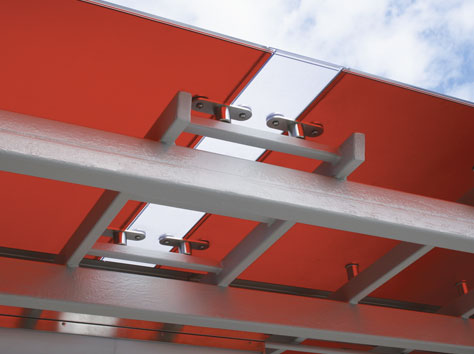

Shown in this image:
Koda Xt
koda xt cranberry
Point Support XT
