point support XT
< <
Point Support XT is a premium exterior-rated hardware system designed to support 3form Koda XT and Chroma XT product lines in installations on concrete, CMU, and structural steel substrates—so you can add 3form color and texture to architectural exteriors with confidence.
Overview

Point Support XT is manufactured using Marine Grade 316 stainless steel with anti-loosening patch directly applied to the threads (as thread-locking chemicals are not compatible with Varia Ecoresin). Barrels and caps from the XT line are 1-1/2” diameter to allow increased hole size for expansion/contraction inherent in exterior applications. Teflon washers allow expansion without binding the panel.

Supports 3form materials used as:

  • Rainscreen (Not a weatherproofing solution)
  • Signage
  • Decorative covering

Point Support XT is a premium exterior-rated hardware system designed to support 3form Koda XT and Chroma XT product lines in installations on concrete, CMU, and structural steel substrates. Quantity of supports per panel is determined by 3form personnel and varies by condition. Please contact your 3form rep for more information.

XT Barrels

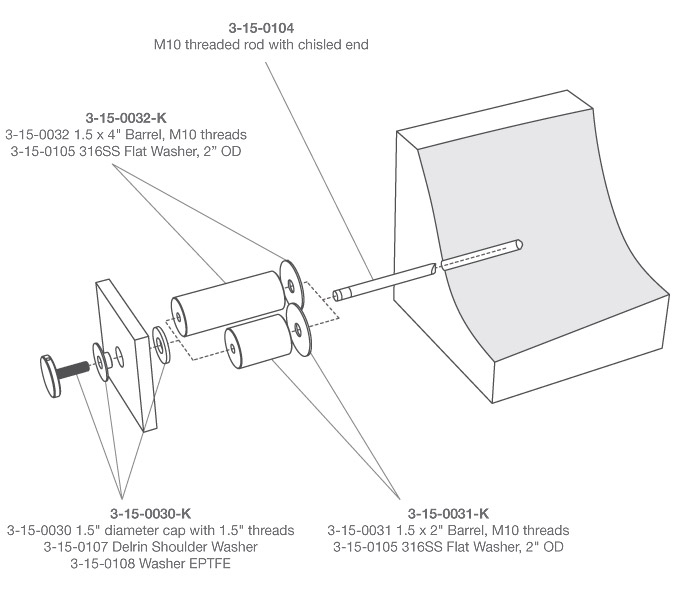

Concrete
Point Support XT is designed for concrete conditions. Concrete threaded rod with thread-locking patch are available for this condition. 3form personnel must verify material type and number of attachments.

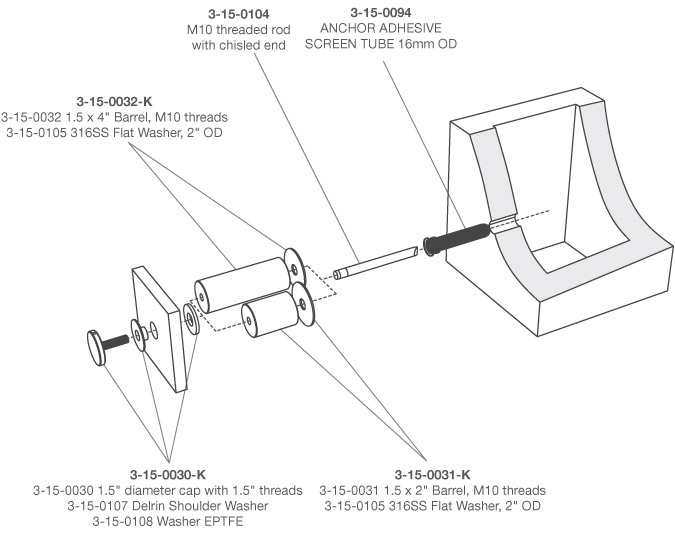

CMU
Point Support XT is designed for CMU conditions. CMU sleeve and threaded rod with thread-locking patch are available for this condition. 3form personnel must verify material type and number of attachments.

XT Spiders

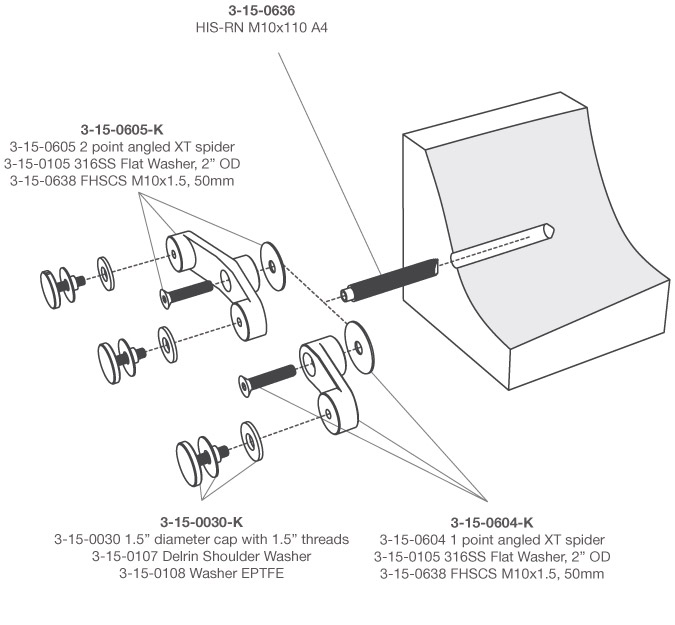

Concrete

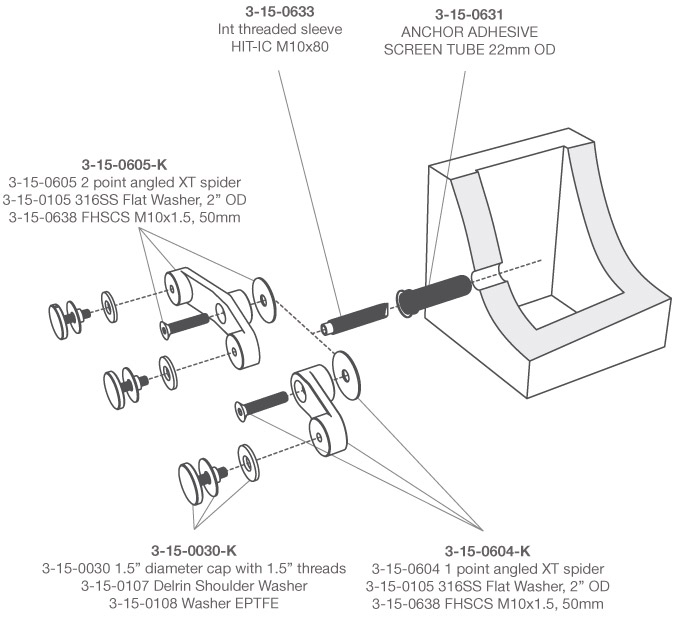

CMU
